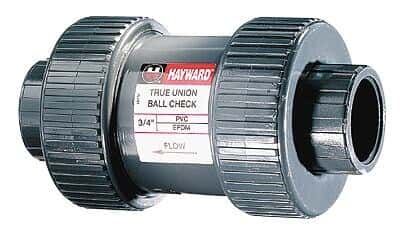

Check Valve 1in PVC
SKU
CP/OO/O/P-01341-04
Brand
MASTERFx
Pre-order (Deliver in 8 to 12 weeks)
Unique square-cut elastomer seat provides seal at very low back pressures
MORE ABOUT THIS ITEM
Quickly and easily install either vertically or horizontally. These valves are assembled with water soluble, silicone-free lubricant and constructed of a one-piece PVC body.
Specifications & Description
- Port Size (NPT(F)): 1
- Outlet Port: 1" NPT(F) and socket
- Connection Type: NPT(F) and Socket
- Inlet Port: 1" NPT(F) and socket
- Cv: 28
- Max Temperature (
° F
): 140 - Max Temperature (
° C
): 60 - Wetted Materials: PVC, EPDM
- Working Pressure (PSI): 150
- Description: True Union Ball Check Valve, 1" socket and NPT(F) connectors
Unique square-cut elastomer seat provides seal at very low back pressures
MORE ABOUT THIS ITEM
Quickly and easily install either vertically or horizontally. These valves are assembled with water soluble, silicone-free lubricant and constructed of a one-piece PVC body.
Specifications & Description
- Port Size (NPT(F)): 1
- Outlet Port: 1" NPT(F) and socket
- Connection Type: NPT(F) and Socket
- Inlet Port: 1" NPT(F) and socket
- Cv: 28
- Max Temperature (
° F
): 140 - Max Temperature (
° C
): 60 - Wetted Materials: PVC, EPDM
- Working Pressure (PSI): 150
- Description: True Union Ball Check Valve, 1" socket and NPT(F) connectors
| Brand | MASTERFx |
|---|
