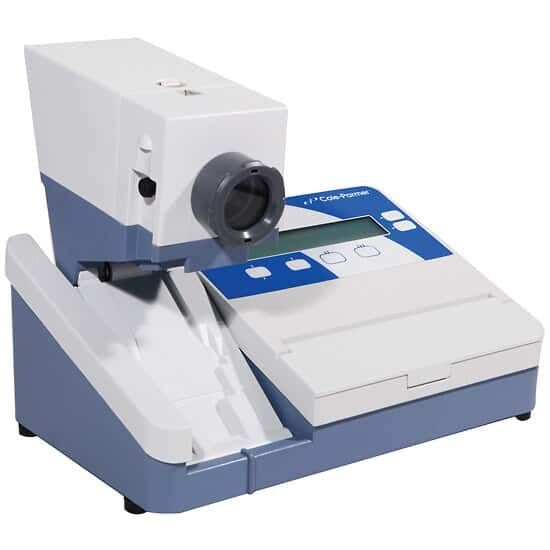

Cole-Parmer Advanced Digital Melting Point Apparatus, 120/230 VAC
SKU
CP/P-03012-27
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)
INCLUDES
pack of 100 capillary tubes (open at one end) and power cord.
Advanced digital melting point apparatus features an innovative �head-up� display which projects a floating red image of the block temperature in the same viewing field as the magnified tubes. This integrated display eliminates the need for you to constantly switch your gaze between the tubes and the temperature shown on the control panel. In addition, the viewing tube can be adjusted up or down for a comfortable viewing angle and then folds flat for easy storage. The advanced unit lets you test three samples simultaneously and features a maximum temperature of 400°C, a variable ramp, and three programmable methods for repeated use. Large backlit LCD shows programming information, stored results, current temperatures, and time. Up to seven date-and-time stamped results per tube can be stored in memory. Use the optional printer for a hard-copy record of the melt results.
Specifications & Description
Max Temperature (
° F
) 752Min Temperature Ambient
Max Temperature (
° C
) 400Temperature Accuracy �0.5°C to 50°C
Heat-Up Time 50 to 350°C in 6 minutes
Temperature Sensor 1000O Pt RTD
Display Multiline alphanumeric LCD, backlit, date/time
Height (cm) 17
Depth (cm) 20
Width (cm) 32.5
Power (VAC) 120 / 230
Power (Hz) 50/60
Power (watts) 81
INCLUDES
pack of 100 capillary tubes (open at one end) and power cord.
Advanced digital melting point apparatus features an innovative “head-up†display which projects a floating red image of the block temperature in the same viewing field as the magnified tubes. This integrated display eliminates the need for you to constantly switch your gaze between the tubes and the temperature shown on the control panel. In addition, the viewing tube can be adjusted up or down for a comfortable viewing angle and then folds flat for easy storage. The advanced unit lets you test three samples simultaneously and features a maximum temperature of 400°C, a variable ramp, and three programmable methods for repeated use. Large backlit LCD shows programming information, stored results, current temperatures, and time. Up to seven date-and-time stamped results per tube can be stored in memory. Use the optional printer for a hard-copy record of the melt results.
Specifications & Description
Max Temperature (
° F
) 752Min Temperature Ambient
Max Temperature (
° C
) 400Temperature Accuracy ±0.5°C to 50°C
Heat-Up Time 50 to 350°C in 6 minutes
Temperature Sensor 1000O Pt RTD
Display Multiline alphanumeric LCD, backlit, date/time
Height (cm) 17
Depth (cm) 20
Width (cm) 32.5
Power (VAC) 120 / 230
Power (Hz) 50/60
Power (watts) 81
| Brand | COLE-PARMER |
|---|
