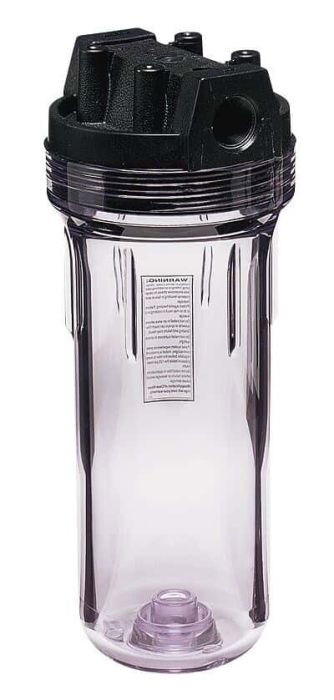

Filter Housing,Cold Water,Transparent styrene acrylonitrile sump &pressure relief valve
SKU
CP/OO/O/P-01509-02
Brand
MASTERFx
Pre-order (Deliver in 8 to 12 weeks)
Model 01509-02 available with pressure relief valve
MORE ABOUT THIS ITEM
Cold Water Housing with Transparent, Styrene Acrylonitrile (SAN) Sump. Talc-filled polypropylene cap. Maximum temperature is 125�>F (52�>C); maximum pressure is 125 psi. Accepts all DOE cartridges. Buna N seal. Model 01509-02 includes a pressure relief valve.
Specifications & Description
- Material: Styrene Acrylonitrile
- Housing Material: Styrene Acrylonitrile
- Flow Rate: 1 to 10 GPM
- Length (in): 10
- Cartridge Length (in): 10
- Port Size: 0.75" NPT(F)
- Relief Valve: Yes
- Max Pressure (PSI): 125
- Max Temperature (
° F
): 125 - Max Temperature (
° C
): 51.7 - Housing Height (in): 32.07
- Housing Outside Diameter (OD) (in): 5.125
- Housing Outside Diameter (OD) (cm): 13.02
- Description: Double Open End Cold Water Housing w/ Clear SAN Sump and Pressure Valve
Model 01509-02 available with pressure relief valve
MORE ABOUT THIS ITEM
Cold Water Housing with Transparent, Styrene Acrylonitrile (SAN) Sump. Talc-filled polypropylene cap. Maximum temperature is 125°>F (52°>C); maximum pressure is 125 psi. Accepts all DOE cartridges. Buna N seal. Model 01509-02 includes a pressure relief valve.
Specifications & Description
- Material: Styrene Acrylonitrile
- Housing Material: Styrene Acrylonitrile
- Flow Rate: 1 to 10 GPM
- Length (in): 10
- Cartridge Length (in): 10
- Port Size: 0.75" NPT(F)
- Relief Valve: Yes
- Max Pressure (PSI): 125
- Max Temperature (
° F
): 125 - Max Temperature (
° C
): 51.7 - Housing Height (in): 32.07
- Housing Outside Diameter (OD) (in): 5.125
- Housing Outside Diameter (OD) (cm): 13.02
- Description: Double Open End Cold Water Housing w/ Clear SAN Sump and Pressure Valve
| Brand | MASTERFx |
|---|
