Filter System PVC 10inFiltration 115V
SKU
CP/OO/O/P-01509-51
Brand
MASTERFx
Pre-order (Deliver in 8 to 12 weeks)

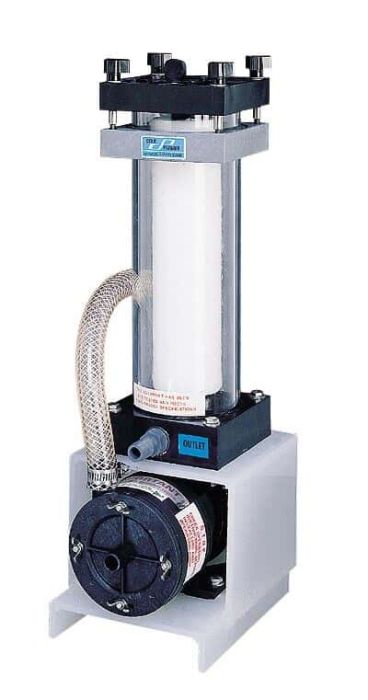

Pump, stand, and filter housing all-in-one unit
- Compact size for benchtop use
- Uses a leak-free, seal-less, magnetic-coupled pump
INCLUDES
pump; filter chamber and interconnecting piping; mounting base; 8-foot, 3-wire cord with plug; 6 ft x 5/8" wire-reinforced vinyl suction/discharge hose; priming bulb; suction strainer; and chamber vent plug.
MORE ABOUT THIS ITEM
Unit comes completely assembled, simply insert the filter cartridge of choice and connect power, suction and discharge. Filter housings accept a single 10" filter cartridge�see our wide selection of cartridges sold separately. Filtration systems offer a of 345 GPH with a 1/12 hp, TEFC motor that runs on 115 VAC, 50/60 Hz power.
The polypropylene (PP) model with the clear PVC chamber is ideal for most common filtration applications. It can be used for filtering mild acid (non-fluorine) and alkaline solutions. Constructed with EPDM housing seals.
The CPVC model has added chemical resistance for filtering stronger acid including fluorine) and alkaline solutions. Constructed with EPDM housing seals.
Specifications & Description
- Material: PP/PVC (clear)
- Flow Rate: 5.75 GPM
- Length (in): 22
- Max Pressure (PSI): 65
- Max Temperature (
° F
): 140 - Max Temperature (
° C
): 60 - Power (VAC): 115
- Power (Hz): 50/60
- Motor HP: 0
- Motor Type: TEFC
- Housing Depth (cm): 22
- Height (in): 55.88
- Depth (in): 10
- Width (in): 8
- Depth (cm): 25.4
- Width (cm): 20.32
- Description: Compact Filtration System, PP/PVC
Pump, stand, and filter housing all-in-one unit
- Compact size for benchtop use
- Uses a leak-free, seal-less, magnetic-coupled pump
INCLUDES
pump; filter chamber and interconnecting piping; mounting base; 8-foot, 3-wire cord with plug; 6 ft x 5/8" wire-reinforced vinyl suction/discharge hose; priming bulb; suction strainer; and chamber vent plug.
MORE ABOUT THIS ITEM
Unit comes completely assembled, simply insert the filter cartridge of choice and connect power, suction and discharge. Filter housings accept a single 10" filter cartridge—see our wide selection of cartridges sold separately. Filtration systems offer a of 345 GPH with a 1/12 hp, TEFC motor that runs on 115 VAC, 50/60 Hz power.
The polypropylene (PP) model with the clear PVC chamber is ideal for most common filtration applications. It can be used for filtering mild acid (non-fluorine) and alkaline solutions. Constructed with EPDM housing seals.
The CPVC model has added chemical resistance for filtering stronger acid including fluorine) and alkaline solutions. Constructed with EPDM housing seals.
Specifications & Description
- Material: PP/PVC (clear)
- Flow Rate: 5.75 GPM
- Length (in): 22
- Max Pressure (PSI): 65
- Max Temperature (
° F
): 140 - Max Temperature (
° C
): 60 - Power (VAC): 115
- Power (Hz): 50/60
- Motor HP: 0
- Motor Type: TEFC
- Housing Depth (cm): 22
- Height (in): 55.88
- Depth (in): 10
- Width (in): 8
- Depth (cm): 25.4
- Width (cm): 20.32
- Description: Compact Filtration System, PP/PVC
| Brand | MASTERFx |
|---|
