Flowmeter, Aluminium/SS
SKU
CP/OO/O/P-03227-06
Brand
MASTERFx
Pre-order (Deliver in 8 to 12 weeks)
Don�t sacrifice suitability for precision
- Correlated flowmeters feature a generic scale�reference flow curves calibrated to a variety of media, temperatures and pressures to get the flow rateUse with a variety of media for laboratory and industrial applications
MORE ABOUT THIS ITEM
Aluminum is economical and good for general use with noncorrosive gases and liquids. Brass is economical and good for use with water. Stainless steel withstands higher temperature and pressure and features excellent chemical compatibility. Valved meters have valves mounted at the bottom/inlet, typically used for positive pressure with liquids and gases. The valve can be reconfigured to mount at the top/outlet, often for vacuum applications. All correlated flowmeters come with data sheets for water and air at standard temperature and pressure (STP).
Specifications & Description
- Accuracy: �2% full-scale
- Repeatability: �0.25%
- Max Pressure (PSI): 200
- Max Air Flow Rate (mL/min): 137
- Max Argon Flow Rate (mL/min): 113
- Max CO2 Flow Rate (mL/min): 150
- Max H2 Flow Rate (mL/min): 301
- Max Water Flow Rate (mL/min): 2.45
- Max Helium Flow Rate (mL/min): 133
- Max N2 Flow Rate (mL/min): 143
- Max O2 Flow Rate (mL/min): 131
- Max Flow Rate (mL/min): 137
- Material Flow Tube: Borosilicate glass
- Material Fitting: Aluminum
- Material Valve: Aluminum
- Material O-Ring: Buna-N
- Material Float: 316 Stainless Steel
- Material Housing: Aluminum
- Valve: Yes
- Max Operating Temperature (
° F
): 250 - Max Operating Temperature (
° C
): 121 - Process Connection (NPT(F)): 0

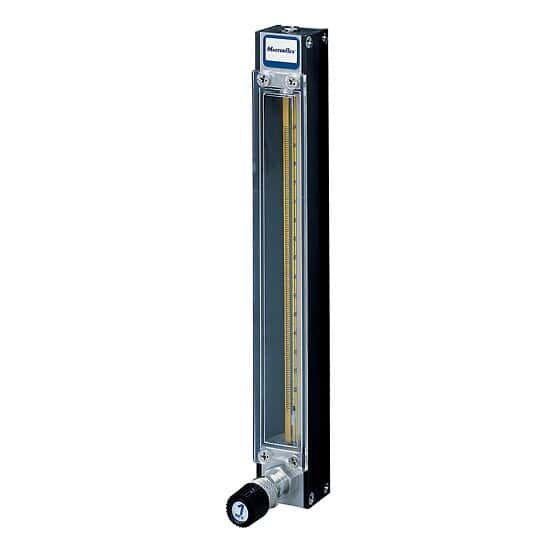

- Description: Variable-Area Flowmeter with High-Res Valve, Correlated Reading, Aluminum Housing and Fittings, 150-mm Scale; 137 mL/min Air
Don’t sacrifice suitability for precision
- Correlated flowmeters feature a generic scale—reference flow curves calibrated to a variety of media, temperatures and pressures to get the flow rateUse with a variety of media for laboratory and industrial applications
MORE ABOUT THIS ITEM
Aluminum is economical and good for general use with noncorrosive gases and liquids. Brass is economical and good for use with water. Stainless steel withstands higher temperature and pressure and features excellent chemical compatibility. Valved meters have valves mounted at the bottom/inlet, typically used for positive pressure with liquids and gases. The valve can be reconfigured to mount at the top/outlet, often for vacuum applications. All correlated flowmeters come with data sheets for water and air at standard temperature and pressure (STP).
Specifications & Description
- Accuracy: ±2% full-scale
- Repeatability: ±0.25%
- Max Pressure (PSI): 200
- Max Air Flow Rate (mL/min): 137
- Max Argon Flow Rate (mL/min): 113
- Max CO2 Flow Rate (mL/min): 150
- Max H2 Flow Rate (mL/min): 301
- Max Water Flow Rate (mL/min): 2.45
- Max Helium Flow Rate (mL/min): 133
- Max N2 Flow Rate (mL/min): 143
- Max O2 Flow Rate (mL/min): 131
- Max Flow Rate (mL/min): 137
- Material Flow Tube: Borosilicate glass
- Material Fitting: Aluminum
- Material Valve: Aluminum
- Material O-Ring: Buna-N
- Material Float: 316 Stainless Steel
- Material Housing: Aluminum
- Valve: Yes
- Max Operating Temperature (
° F
): 250 - Max Operating Temperature (
° C
): 121 - Process Connection (NPT(F)): 0
- Description: Variable-Area Flowmeter with High-Res Valve, Correlated Reading, Aluminum Housing and Fittings, 150-mm Scale; 137 mL/min Air
