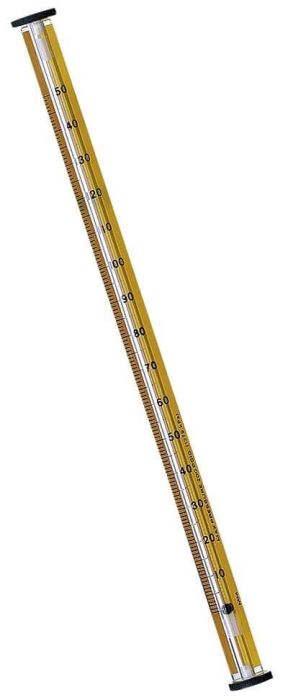

Flowtube 150mm W/Glass Float
SKU
CP/P-03217-21
Brand
MASTERFx
Pre-order (Deliver in 8 to 12 weeks)
Create your own flowmeter systems for complete flexibility
- Correlated flowmeters feature a generic scale�reference flow curves calibrated to a variety of media, temperatures and pressures to get the flow rate
- Direct-reading flowmeters feature a calibrated scale for a specific medium�no need to convert readings to get flow rate
- Use with air or water for laboratory and industrial applications
- Required system components for flowmeter systems would be frame, flowtube(s), valve cartridge, and tripod�order each component separately
- Minimum flow rate is approximately 10% of max flow rate
- Correlated flow tubes feature �2% accuracy
MORE ABOUT THIS ITEM
Design a flow system to meet your metering, mixing, or monitoring applications. We offer a variety of frames and flowtubes so that you can create the system to meet your exact needs.
Choose 65- or 150-mm flowtubes depending on the selected frame size. Flowtubes are calibrated for direct-reading or correlated reading of air or water at STP (standard temperature and pressure).
Specifications & Description
- Length (“): 5
- Accuracy: �5% full-scale
- Repeatability: �0.25% full-scale
- Max Air Flow Rate (mL/min): 2313
- Max Flow Rate (mL/min): 53.5
- Material Flow Tube: Borosilicate glass
- Material Float: Glass
- Max Operating Temperature (
° F
): 250 - Max Operating Temperature (
° C
): 121 - Process Connection (NPT(F)): 0
- Fluid Type: Air or Water
- Description: 150 mm Flow Tube, Correlated for 2313 mL/min Air, 53.5 mL/min Water
Create your own flowmeter systems for complete flexibility
- Correlated flowmeters feature a generic scale—reference flow curves calibrated to a variety of media, temperatures and pressures to get the flow rate
- Direct-reading flowmeters feature a calibrated scale for a specific medium—no need to convert readings to get flow rate
- Use with air or water for laboratory and industrial applications
- Required system components for flowmeter systems would be frame, flowtube(s), valve cartridge, and tripod—order each component separately
- Minimum flow rate is approximately 10% of max flow rate
- Correlated flow tubes feature ±2% accuracy
MORE ABOUT THIS ITEM
Design a flow system to meet your metering, mixing, or monitoring applications. We offer a variety of frames and flowtubes so that you can create the system to meet your exact needs.
Choose 65- or 150-mm flowtubes depending on the selected frame size. Flowtubes are calibrated for direct-reading or correlated reading of air or water at STP (standard temperature and pressure).
Specifications & Description
- Length (“): 5
- Accuracy: ±5% full-scale
- Repeatability: ±0.25% full-scale
- Max Air Flow Rate (mL/min): 2313
- Max Flow Rate (mL/min): 53.5
- Material Flow Tube: Borosilicate glass
- Material Float: Glass
- Max Operating Temperature (
° F
): 250 - Max Operating Temperature (
° C
): 121 - Process Connection (NPT(F)): 0
- Fluid Type: Air or Water
- Description: 150 mm Flow Tube, Correlated for 2313 mL/min Air, 53.5 mL/min Water
| Brand | MASTERFx |
|---|
