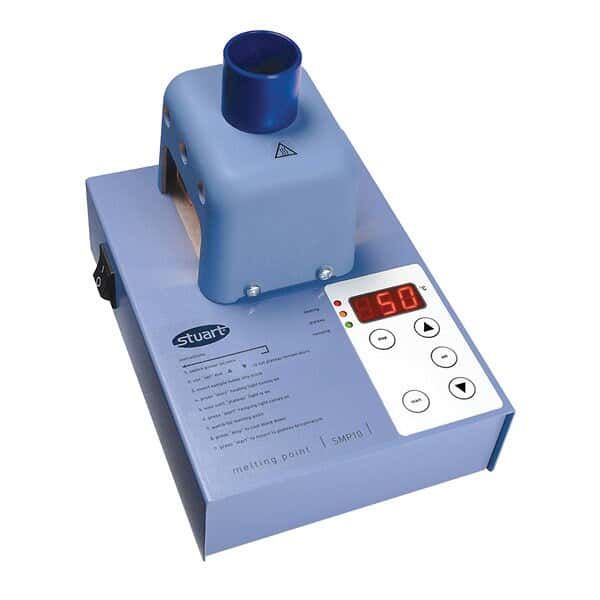

High Resolution Digital Melting Point Apparatus, 230 V
SKU
CP/P-03011-47
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)
No more reading glass thermometers
- Select, measure, and display the temperature digitally, ensuring accuracy and repeatability
- Easily view the melt via magnifying lens with built-in illumination
- Be more productive�test multiple samples simultaneously
- Save time by setting a plateau temperature for initial warm-up
- Model SMP20 provides 300°C max temp with 0.1� resolution
- 230 VAC operation
INCLUDES
pack of 100 capillary tubes (open at one end).
MORE ABOUT THIS ITEM
Designed for maximum safety and ease of use. Select, measure, and display the temperature digitally, ensuring accuracy and avoiding the need for a glass thermometer. Test two samples simultaneously, viewing the melt via a magnifying lens with built-in illumination. Extend the back feet for the optimal viewing angle.
Set a plateau temperature for initial warm-up � unattended warm-up time frees up the user until the plateau temperature is reached. Heating rate continues at 2°C after the warm-up, slowly reaching the melt temperature for greater accuracy.
Specifications & Description
- Max Temperature (
° F
)572 - Min TemperatureAmbient
- Max Temperature (
° C
)300 - Temperature Accuracy�1.0°C to 20°C; �2.5°C at 300°C
- Temperature Resolution0.1°C
- Heat-Up Time50 to 350°C in 15 minutes
- Temperature Sensor100O Pt RTD
- Display4-digital LED
- Height (in)6
- Depth (in)8
- Width (in)6 1/4
- Height (cm)17
- Depth (cm)22
- Width (cm)16
- Power (VAC)230
- Power (Hz)50
- Power (watts)75
- DescriptionHigh Resolution Digital Melting Point Apparatus, 230 V
No more reading glass thermometers
- Select, measure, and display the temperature digitally, ensuring accuracy and repeatability
- Easily view the melt via magnifying lens with built-in illumination
- Be more productive—test multiple samples simultaneously
- Save time by setting a plateau temperature for initial warm-up
- Model SMP20 provides 300°C max temp with 0.1° resolution
- 230 VAC operation
INCLUDES
pack of 100 capillary tubes (open at one end).
MORE ABOUT THIS ITEM
Designed for maximum safety and ease of use. Select, measure, and display the temperature digitally, ensuring accuracy and avoiding the need for a glass thermometer. Test two samples simultaneously, viewing the melt via a magnifying lens with built-in illumination. Extend the back feet for the optimal viewing angle.
Set a plateau temperature for initial warm-up — unattended warm-up time frees up the user until the plateau temperature is reached. Heating rate continues at 2°C after the warm-up, slowly reaching the melt temperature for greater accuracy.
Specifications & Description
- Max Temperature (
° F
)572 - Min TemperatureAmbient
- Max Temperature (
° C
)300 - Temperature Accuracy±1.0°C to 20°C; ±2.5°C at 300°C
- Temperature Resolution0.1°C
- Heat-Up Time50 to 350°C in 15 minutes
- Temperature Sensor100O Pt RTD
- Display4-digital LED
- Height (in)6
- Depth (in)8
- Width (in)6 1/4
- Height (cm)17
- Depth (cm)22
- Width (cm)16
- Power (VAC)230
- Power (Hz)50
- Power (watts)75
- DescriptionHigh Resolution Digital Melting Point Apparatus, 230 V
