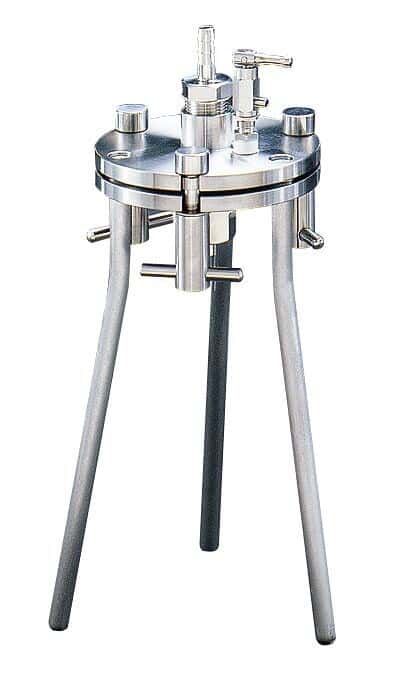

Holder, pressure filtering, 142mm
SKU
CP/OO/O/P-02927-50
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)
Stainless steel type 304 or 316 minimizes resistance and maximizes flow rate
MORE ABOUT THIS ITEM
Pressure filtration holders maximize flow rates by applying positive pressure to the fluid over a broad membrane surface. Holders are autoclavable with one filter membrane that is sealed with removable wing nuts. All holders vent to release pressure.
Holders have PTFE gaskets, silicone O-rings, and PTFE-coated photoetched stainless steel support screens (model 02926-50 has a 304 SS support screen) to prevent nitrocellulose membranes from sticking. Holders process samples from an in-line system or pressure vessel.
Specifications & Description
- Material: 304 Stainless Steel
- Filter Diameter (mm): 142
- Prefilter Diameter (mm): 124
- Filtration Area (cm�): 113
- Max Pressure (PSI): 100
- Max Pressure (bar): 7
- Adapter Size (included): 3/4" NPT to 11mm ID
- Height (in): 16.75
- Height (cm): 42.545
- Diameter (in): 7.25
- Diameter (cm): 18.415
- Description: Pressure Filtration Holder, for 142 mm filter; 304 Stainless Steel
Stainless steel type 304 or 316 minimizes resistance and maximizes flow rate
MORE ABOUT THIS ITEM
Pressure filtration holders maximize flow rates by applying positive pressure to the fluid over a broad membrane surface. Holders are autoclavable with one filter membrane that is sealed with removable wing nuts. All holders vent to release pressure.
Holders have PTFE gaskets, silicone O-rings, and PTFE-coated photoetched stainless steel support screens (model 02926-50 has a 304 SS support screen) to prevent nitrocellulose membranes from sticking. Holders process samples from an in-line system or pressure vessel.
Specifications & Description
- Material: 304 Stainless Steel
- Filter Diameter (mm): 142
- Prefilter Diameter (mm): 124
- Filtration Area (cm²): 113
- Max Pressure (PSI): 100
- Max Pressure (bar): 7
- Adapter Size (included): 3/4" NPT to 11mm ID
- Height (in): 16.75
- Height (cm): 42.545
- Diameter (in): 7.25
- Diameter (cm): 18.415
- Description: Pressure Filtration Holder, for 142 mm filter; 304 Stainless Steel
