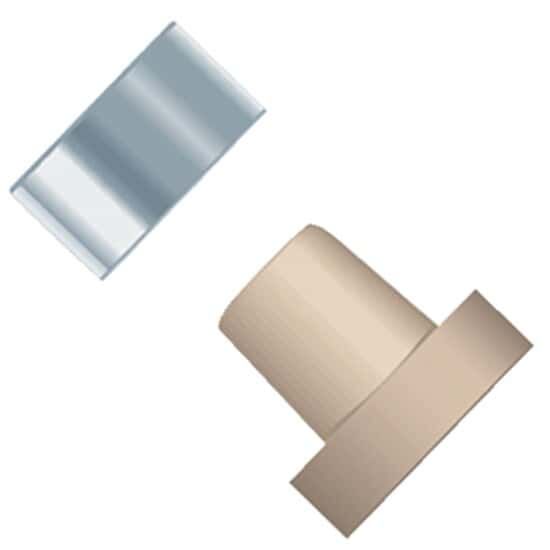

Idex P-250X Super Flangeless Ferrule, 2500 psi Natural PEEK/SS Ring, 1/16in OD Tubing,
SKU
CP/P-02013-72
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)
Combine with Super Flangeless� nut for a high pressure holding flat-bottom fitting assembly
- Lock ring eliminates tubing twist that can loosen connections Resistant to loosening through vibration
- Max pressure of 2500 psi (172 bar)
- For 1/16" OD tubing
- Natural PEEK/316 SS ring
- 10/PK
MORE ABOUT THIS ITEM
Super Flangeless� ferrules combined with nuts are an excellent choice for tubing assemblies and will stay tight even through vibration. Ferrules come with lock ring to hold the ferrule in place, preventing the nuts from sliding off in tubing assemblies. The lock ring also allows tightening without twisting the tubing.
Specifications & Description
- Fitting Material: PEEK/SS
- Connection Type: HPLC/Chromatography
- Thread size UNF(M) (port 1) (in): 1/4-28 flat bottom
- Compression Size / Tube Od (Port 1) (in): 1/16
- Thread Size ISO Metric (M) (Port 1) (mm): 6
- Color: Natural
- Max Operating Pressure (PSI): 2500
- Description: Super Flangeless� Ferrule, 2500 psi Natural PEEK/SS Ring, 1/16" OD Tubing, 1/4-28 or M6 Flat Bottom; 10/PK
Combine with Super Flangeless™ nut for a high pressure holding flat-bottom fitting assembly
- Lock ring eliminates tubing twist that can loosen connections Resistant to loosening through vibration
- Max pressure of 2500 psi (172 bar)
- For 1/16" OD tubing
- Natural PEEK/316 SS ring
- 10/PK
MORE ABOUT THIS ITEM
Super Flangeless™ ferrules combined with nuts are an excellent choice for tubing assemblies and will stay tight even through vibration. Ferrules come with lock ring to hold the ferrule in place, preventing the nuts from sliding off in tubing assemblies. The lock ring also allows tightening without twisting the tubing.
Specifications & Description
- Fitting Material: PEEK/SS
- Connection Type: HPLC/Chromatography
- Thread size UNF(M) (port 1) (in): 1/4-28 flat bottom
- Compression Size / Tube Od (Port 1) (in): 1/16
- Thread Size ISO Metric (M) (Port 1) (mm): 6
- Color: Natural
- Max Operating Pressure (PSI): 2500
- Description: Super Flangeless™ Ferrule, 2500 psi Natural PEEK/SS Ring, 1/16" OD Tubing, 1/4-28 or M6 Flat Bottom; 10/PK
