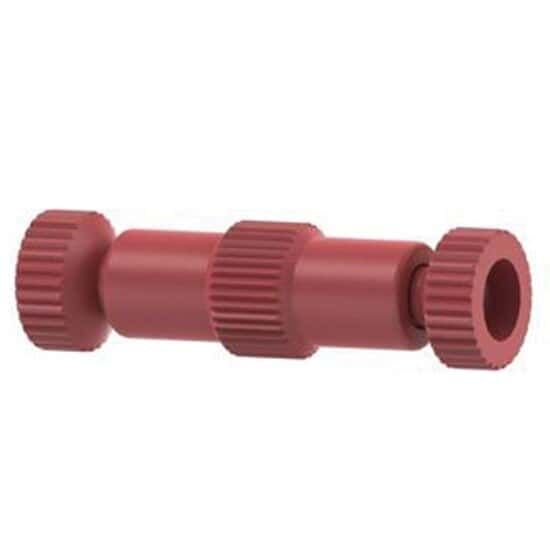

Idex P-771 High-Pressure MicroTight Union Assembly, True ZDV, PEEK, 1/32in OD Tubing, 6-32 Coned
SKU
CP//P-02014-43
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)
Securely connect two-pieces of capillary tubing with MicroTight connectors
- Unions withstand up to 5000 psi (345 bar)
- True ZDV union assembly with 6-32 coned configuration for 1/32" OD tubing
- pressure 5000 psi (345 bar)
INCLUDES
Two F-1265, one P-553
MORE ABOUT THIS ITEM
Use the unions and elbows to connect two pieces of capillary tubing that will withstand higher pressures. The true zero-dead-volume (ZDV) unions feature a gauge plug that allows two pieces of tubing to connect directly to each other to ensure proper alignment. Use the conductive MicroTight union to introduce voltage into your system.
Specifications & Description
- Fitting Material: PEEK
- Connection Type: HPLC/Chromatography
- Number Of Ports: 2
- Thread size UNF(M) (port 2) (in): 6-32 Coned
- Thread size UNF(F) (port 1) (in): 6-32 Coned
- Compression Size / Tube Od (Port 1) (in): 1/32
- Color: Natural
- Max Operating Pressure (PSI): 5000
- Description: Idex P-771 High-Pressure MicroTight Union Assembly, True ZDV, PEEK, 1/32" OD Tubing, 6-32 Coned; 1/EA
Securely connect two-pieces of capillary tubing with MicroTight connectors
- Unions withstand up to 5000 psi (345 bar)
- True ZDV union assembly with 6-32 coned configuration for 1/32" OD tubing
- pressure 5000 psi (345 bar)
INCLUDES
Two F-1265, one P-553
MORE ABOUT THIS ITEM
Use the unions and elbows to connect two pieces of capillary tubing that will withstand higher pressures. The true zero-dead-volume (ZDV) unions feature a gauge plug that allows two pieces of tubing to connect directly to each other to ensure proper alignment. Use the conductive MicroTight union to introduce voltage into your system.
Specifications & Description
- Fitting Material: PEEK
- Connection Type: HPLC/Chromatography
- Number Of Ports: 2
- Thread size UNF(M) (port 2) (in): 6-32 Coned
- Thread size UNF(F) (port 1) (in): 6-32 Coned
- Compression Size / Tube Od (Port 1) (in): 1/32
- Color: Natural
- Max Operating Pressure (PSI): 5000
- Description: Idex P-771 High-Pressure MicroTight Union Assembly, True ZDV, PEEK, 1/32" OD Tubing, 6-32 Coned; 1/EA
| Brand | COLE-PARMER |
|---|
