Temperature Control 2 Zone K 15Amps 120V AL
SKU
CP/P-36225-72
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)

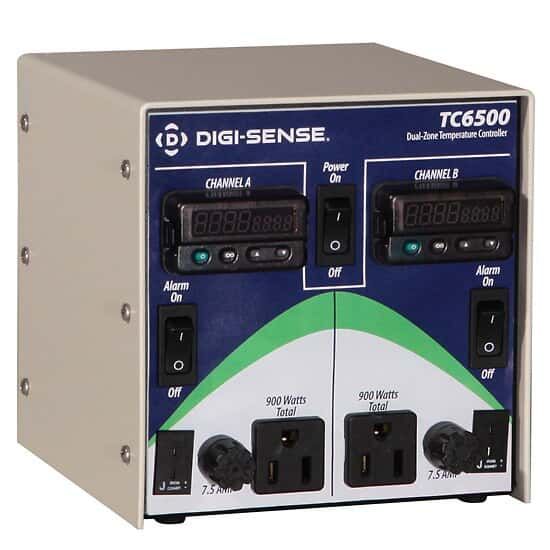

Combines two controllers into one, for controlling two independent temperature processes
- Models available for type J, K, or T thermocouples or RTD probes
- Setpoint is easily and securely changed with an interface key
INCLUDES
6’ detachable power cord and a lattice support bracket
MORE ABOUT THIS ITEM
These controllers are designed for controlling two independent temperature processes. and features modern control technology that produces greater temperature stability. The space saving design combines two controllers into one unit to maximize bench space. Each unit displays both the setpoint and process temperature. Auto-tune minimizes setpoint overshoot and feature the ablity to learns your process producing greater stability. The controller also features an audible alarm function, and two panel mounted receptacles that accept three-prong plugs. Select from models for types J, K, or T thermocouples with miniconnectors, or 100 ohm platinum RTD probes. This unit comes with a lattice support bracket, which is ideal for mounting to maximize space.
Specifications & Description
- Max Temperature (
° F
) - 2201 - Min Temperature (
° F
) - 0 - Min Temperature (
° C
) - -328 - Max Temperature (
° C
) - 1250 - Accuracy - 0.1% of span, ±1.0°F/°C
- Resolution - 1°, 1.0° or 1.00°
- Control Input Thermocouple - Yes
- Control Output 1 - SSR
- Alarm Output - Yes
- Display Type - LED Process & Setpoint
- Height (in) - 6.5
- Width (in) - 5.875
- Depth (in) - 6.125
- Height (mm) - 165.1
- Width (mm) - 149.225
- Depth (mm) - 155.575
- Power (VAC) - 120
- Description - 2-Zone Temperature Controller; Type K, 120V/15A
| Brand | COLE-PARMER |
|---|
