Tube Mixer Air 300-3000 RPM
SKU
CP/OO/O/P-04316-22
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)

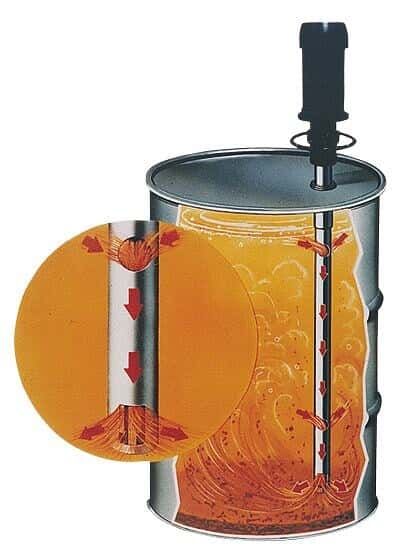

Top-to-bottom movement provides thorough mixing without creating a vortex
INCLUDES
40"L x 2" OD (1016 mm L x 51 mm OD) mixing tube with PTFE resin bearing at the top and base; 316 SS shaft; turbine and sleeve, and 10-ft (3-m).
MORE ABOUT THIS ITEM
These efficient tube mixers allow you to thoroughly mix the contents of 55-gallon (200 liter) drums without removing the drum lid. The 40" (1016 mm) long mixing tube fits into standard 2" (51 mm) bungs and generates a powerful top-to-bottom flow.
A shaft-mounted turbine inside the mixing tube creates a steady suction effect at four upper intake ports. Mixers draw approximately 13 to 14 gallons (49 to 53 liters) of liquid (750 cp max) per minute through the 2" (51 mm) OD mixing tube. The forcefully expelled liquid resuspends and dissolves settled particles. Choose either an electric or air-drive motor mixer.
Air-drive motor mixer�has a 3/4-hp motor that generates speeds from 300 to 3000 rpm with 50-100 psi air input. Mixer includes flow regulator and muffler. We recommend using an air filter/regulator and lubricator.
Specifications & Description
- Min Speed (rpm): 3000
- Max Speed (rpm): 3000
- Mounting Type: 2" NPT(M)
- Motor Type: Air-driven
- Motor hp: 3/4
- Description: Drum/barrel tube mixer with air-driven motor
Top-to-bottom movement provides thorough mixing without creating a vortex
INCLUDES
40"L x 2" OD (1016 mm L x 51 mm OD) mixing tube with PTFE resin bearing at the top and base; 316 SS shaft; turbine and sleeve, and 10-ft (3-m).
MORE ABOUT THIS ITEM
These efficient tube mixers allow you to thoroughly mix the contents of 55-gallon (200 liter) drums without removing the drum lid. The 40" (1016 mm) long mixing tube fits into standard 2" (51 mm) bungs and generates a powerful top-to-bottom flow.
A shaft-mounted turbine inside the mixing tube creates a steady suction effect at four upper intake ports. Mixers draw approximately 13 to 14 gallons (49 to 53 liters) of liquid (750 cp max) per minute through the 2" (51 mm) OD mixing tube. The forcefully expelled liquid resuspends and dissolves settled particles. Choose either an electric or air-drive motor mixer.
Air-drive motor mixer has a 3/4-hp motor that generates speeds from 300 to 3000 rpm with 50-100 psi air input. Mixer includes flow regulator and muffler. We recommend using an air filter/regulator and lubricator.
Specifications & Description
- Min Speed (rpm): 3000
- Max Speed (rpm): 3000
- Mounting Type: 2" NPT(M)
- Motor Type: Air-driven
- Motor hp: 3/4
- Description: Drum/barrel tube mixer with air-driven motor
| Brand | COLE-PARMER |
|---|
