UHP150 Stiirred Cell
SKU
CP/OO/O/P-02910-88
Brand
COLE-PARMER
Pre-order (Deliver in 8 to 12 weeks)
Increase membrane life and speed sample processing
MORE ABOUT THIS ITEM

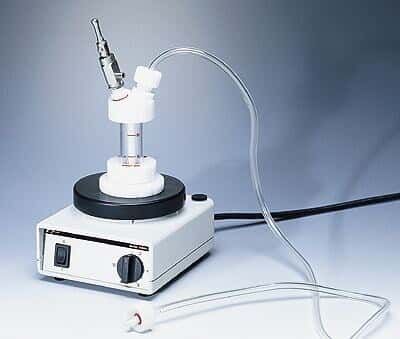

Use stirred cells for dewatering and concentrating proteins and other biological samples with ultrafiltration membranes. They are also recommended for cellulose membrane filtration of fluids with heavy particle burden. Pressurized air from an external source (70 psi/4.8 bar max) filters sample through the membrane. Use cells with cellulose membranes on or ultrafiltration discs. Magnetic stir rod/bar are mounted to cell top cap and are preset to clear membrane surface. Samples do not touch any metal surfaces.
Cells include a preset safety relief valve for pressure buildup, a 1/2" NPT(M) cell cap connection, adapters, and pressure tubing. All cells have polyacetal end caps and stir rod, PTFE stir bar, polypropylene support screen, and silicone O-ring.
Specifications & Description
- Reservoir MaterialAcrylic
- Membrane Diameter (mm)150
- Filtration Area (cm�)162
- Cell Volume (mL)2000
- Min Recoverable Volume (mL)60
- Downstream Hold-Up Volume (mL)41
- Diameter (in)7.75
- Height (in)10
- Diameter (cm)19.8
- Height (cm)26.9
- DescriptionStirred Cell; 150mm dia; 2000 mL cell capacity; Acrylic
Increase membrane life and speed sample processing
MORE ABOUT THIS ITEM
Use stirred cells for dewatering and concentrating proteins and other biological samples with ultrafiltration membranes. They are also recommended for cellulose membrane filtration of fluids with heavy particle burden. Pressurized air from an external source (70 psi/4.8 bar max) filters sample through the membrane. Use cells with cellulose membranes on or ultrafiltration discs. Magnetic stir rod/bar are mounted to cell top cap and are preset to clear membrane surface. Samples do not touch any metal surfaces.
Cells include a preset safety relief valve for pressure buildup, a 1/2" NPT(M) cell cap connection, adapters, and pressure tubing. All cells have polyacetal end caps and stir rod, PTFE stir bar, polypropylene support screen, and silicone O-ring.
Specifications & Description
- Reservoir MaterialAcrylic
- Membrane Diameter (mm)150
- Filtration Area (cm²)162
- Cell Volume (mL)2000
- Min Recoverable Volume (mL)60
- Downstream Hold-Up Volume (mL)41
- Diameter (in)7.75
- Height (in)10
- Diameter (cm)19.8
- Height (cm)26.9
- DescriptionStirred Cell; 150mm dia; 2000 mL cell capacity; Acrylic
| Brand | COLE-PARMER |
|---|
