Valve Ball PVC 3/8NPTF/JG BUNA
SKU
CP/P-01378-70
Brand
MASTERFx
Pre-order (Deliver in 8 to 12 weeks)
Nonmetallic wetted parts ideal for water and mild aqueous solutions
- Maximum pressure: 125 psi (8.6 bar)
- Maximum temperature: 140�F (60°C)
MORE ABOUT THIS ITEM
Ball valves are designed primarily for on/off service.
Specifications & Description
- Port Size (NPT(F)): 0.375
- Outlet Port: 3/8" John Guest
- Connection Type: NPT(F) x John Guest
- Inlet Port: 3/8" NPT(F)
- Orifice (in): 0.437
- Orifice (mm): 11.0998
- Cv: 7
- Max Pressure (PSI): 125
- Max Temperature (
° F
): 140 - Max Temperature (
° C
): 60 - Wetted Materials: PVC
- Tubing OD (in): 0.375

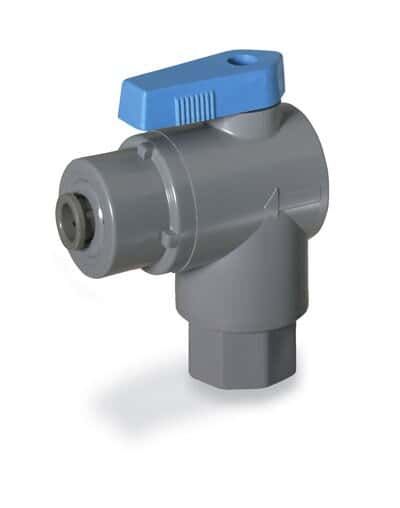

- Description: Ball valve, 2-way right angled, 3/8"NPT(F) x 3/8" John Guest, PVC w/Buna N seals
Nonmetallic wetted parts ideal for water and mild aqueous solutions
- Maximum pressure: 125 psi (8.6 bar)
- Maximum temperature: 140°F (60°C)
MORE ABOUT THIS ITEM
Ball valves are designed primarily for on/off service.
Specifications & Description
- Port Size (NPT(F)): 0.375
- Outlet Port: 3/8" John Guest
- Connection Type: NPT(F) x John Guest
- Inlet Port: 3/8" NPT(F)
- Orifice (in): 0.437
- Orifice (mm): 11.0998
- Cv: 7
- Max Pressure (PSI): 125
- Max Temperature (
° F
): 140 - Max Temperature (
° C
): 60 - Wetted Materials: PVC
- Tubing OD (in): 0.375
- Description: Ball valve, 2-way right angled, 3/8"NPT(F) x 3/8" John Guest, PVC w/Buna N seals
| Brand | MASTERFx |
|---|
