VISCO JET CRACK 120 mm (V4A)
SKU
HD/509-17120-00
Brand
HEIDOLPH
Pre-order (Deliver in 8 to 12 weeks)

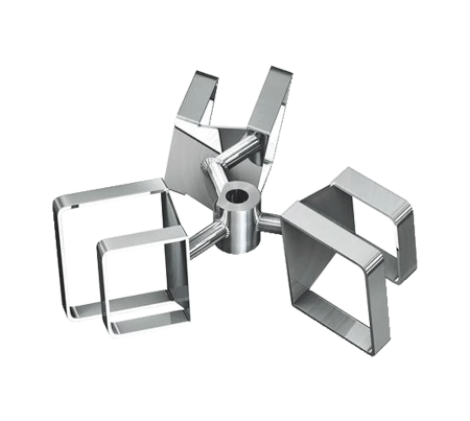

VISCO JET CRACK - 120 mm
P/N:Â 509-17120-00
Particularly in the case of applications with very viscous media such as pastes and gels, a very reliable stirring process in the entire vessel without air entry is important. This is what the innovative stirring system VISCO JETÂ offers!
The particular shape of the blades triggers an intrinsically dynamic flow, which shortens the process times with significantly better mixing results compared to conventional impellers. An all-rounder for aqueous and highly viscous substances. You can find out more about this here.
The VISCO JETÂ Crack 120 is ideal for vessels with the following characteristics:
- ideal vessel diameter: 200- 300 mm
- ideal ground clearance: 36 mm
- ideal filling level: 200- 300 mm
- ideal volume: 6,300 - 21,200 ml
The VISCO JETÂ Crack 120 is made of stainless steel
A stirrer shaft with a diameter of 10 mm is included in the scope of delivery.
VISCO JET CRACK - 120 mm - Technical Data
| Blade size | 120 mm |
|---|---|
| For vessel diameter | 170 - 300 mm |
| Length | 500 mm |
| Material | stainless steel V4A |
| Rotation speed range | 120 - 500 rpm |
| Shaft diameter | 10 mm |
| Brand | HEIDOLPH |
|---|
